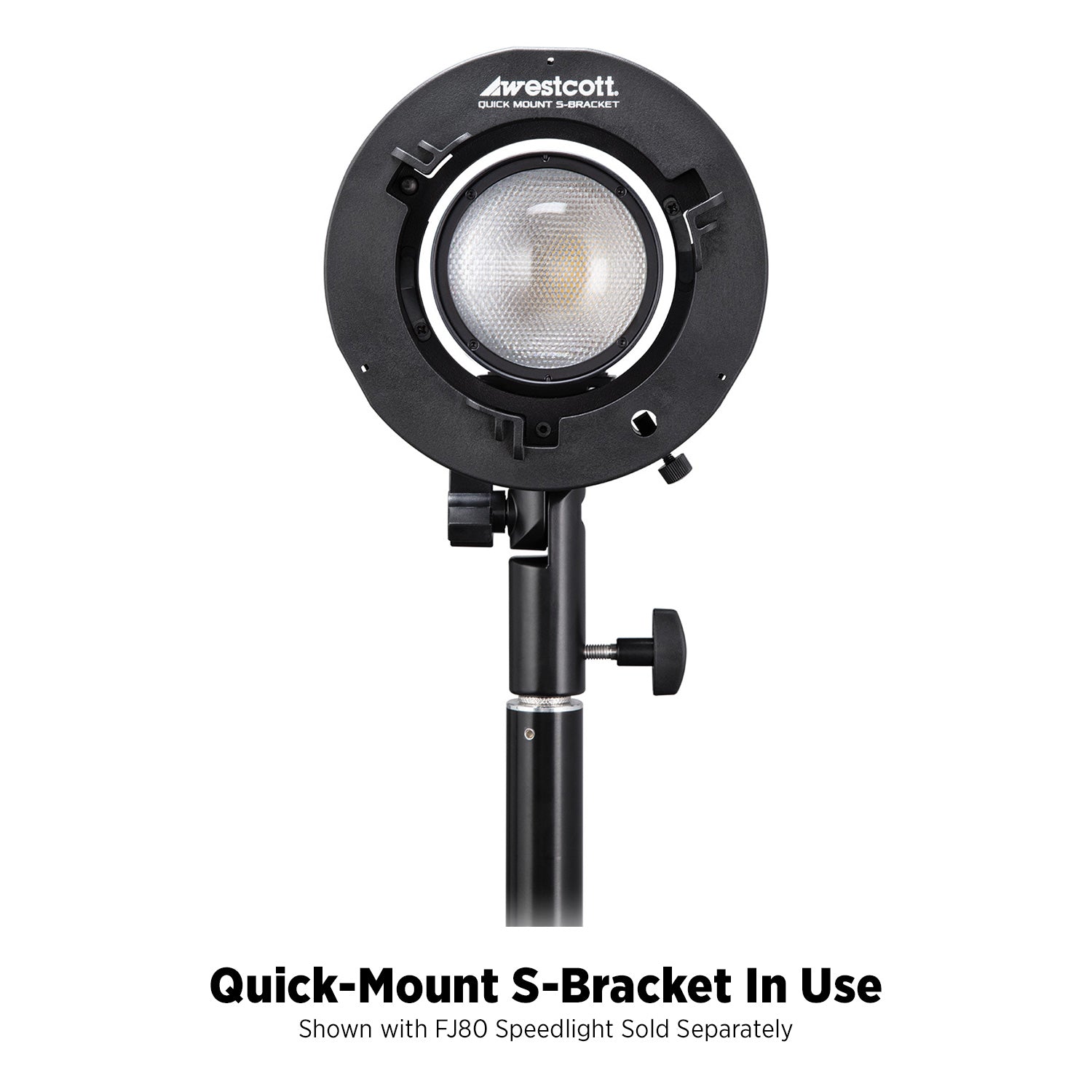

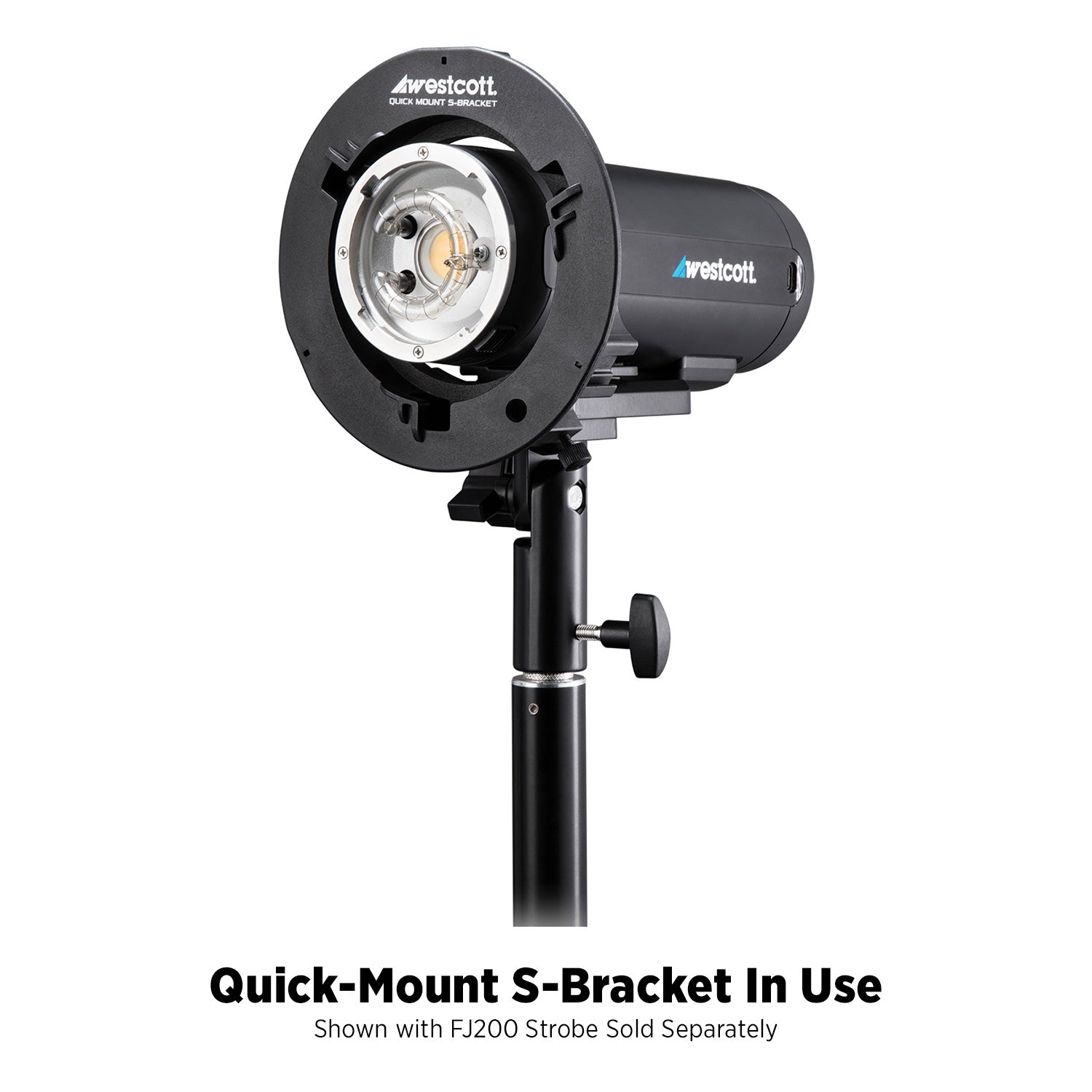

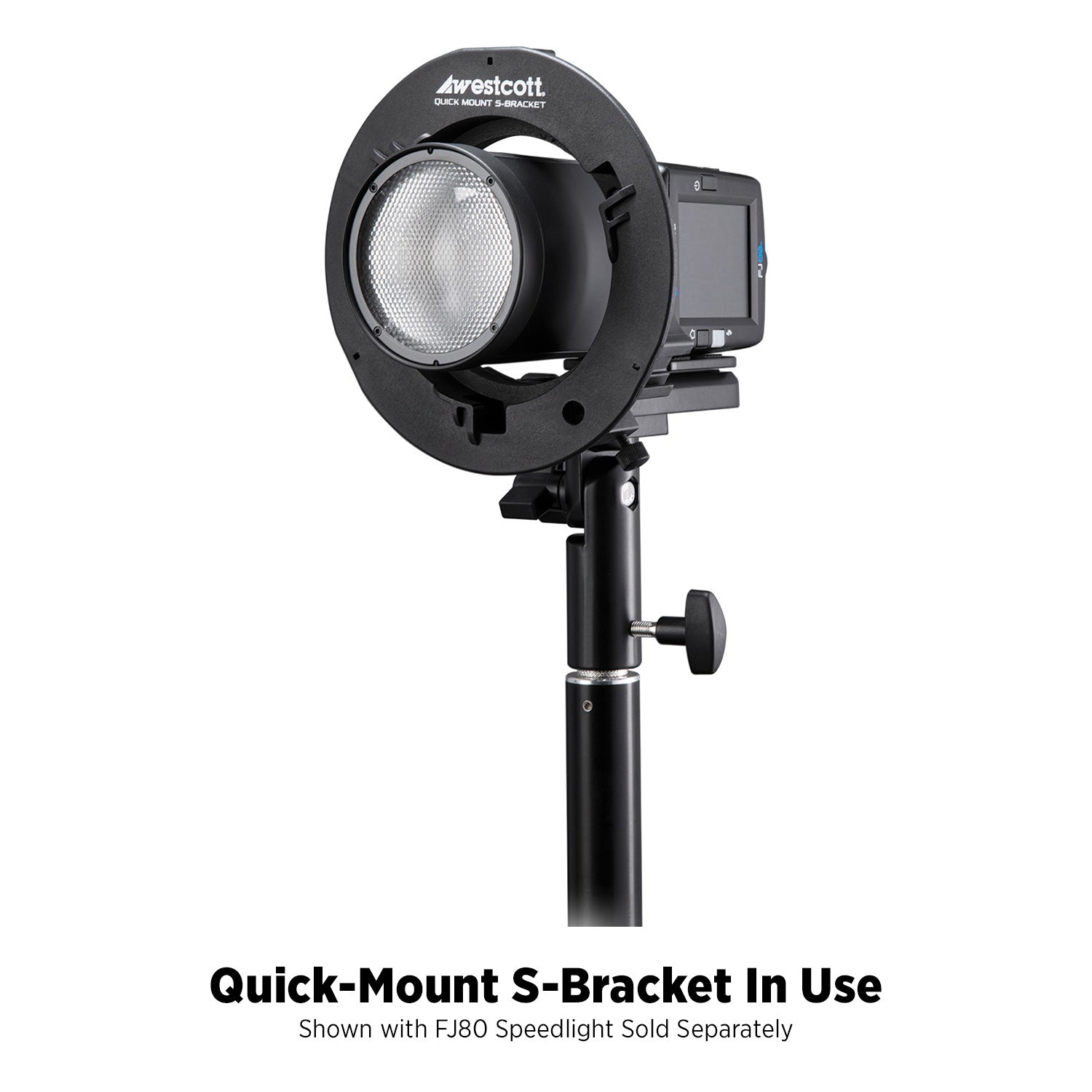

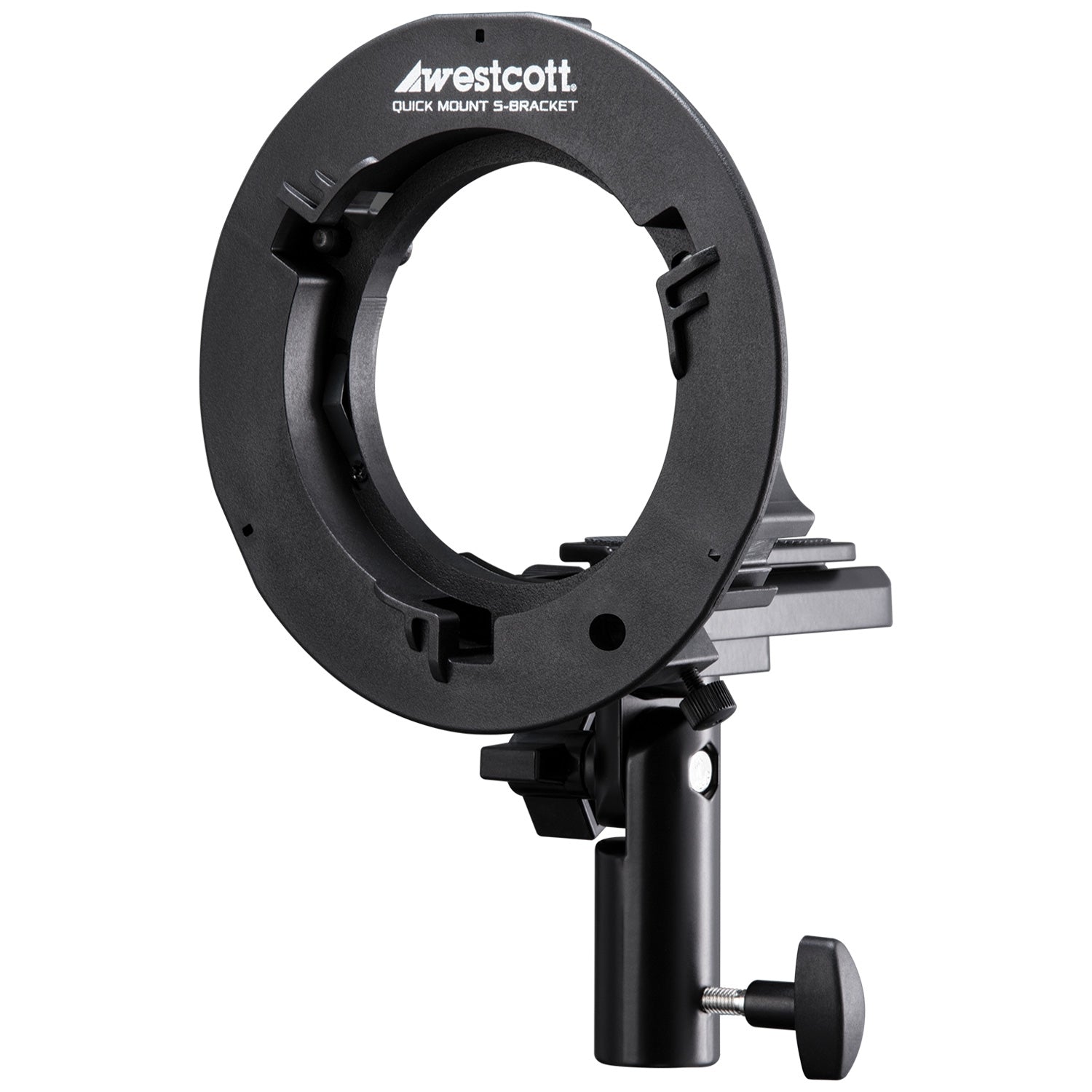

Quick-Mount S-Bracket

The Most Secure, No-Pressure Mounting System for Compact Lights & Modifiers

• Secure mounting system for compact lights and modifiers with no unwanted stress on your light
• Maximizes flash with Bowens S-Type and umbrella-based modifiers

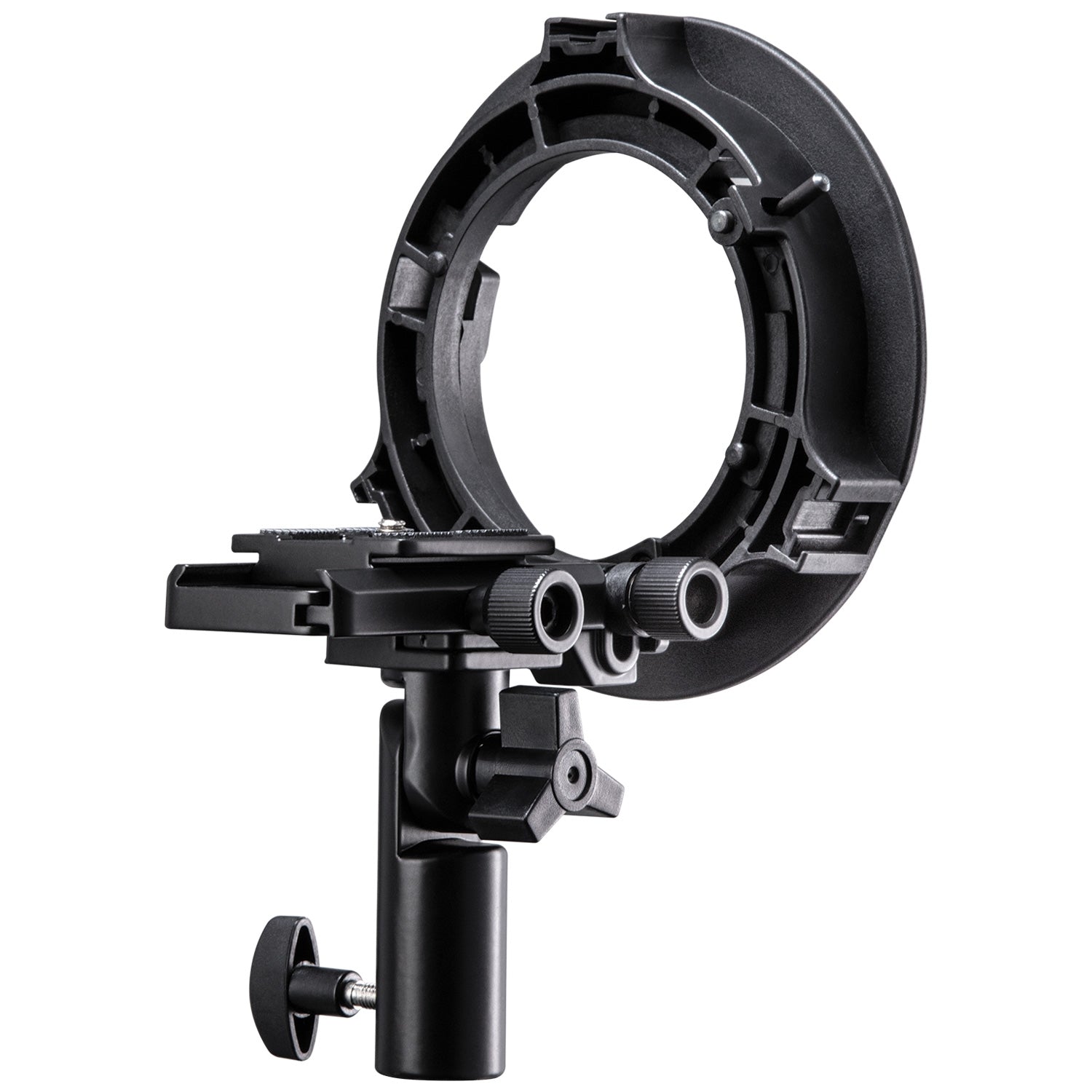

• Adjustable Arca-type mounting plate for precise light placement and maximum output
• Tension screw securely locks umbrella modifiers in place
• Mount compact lights equipped with a 1/4”-20 female thread

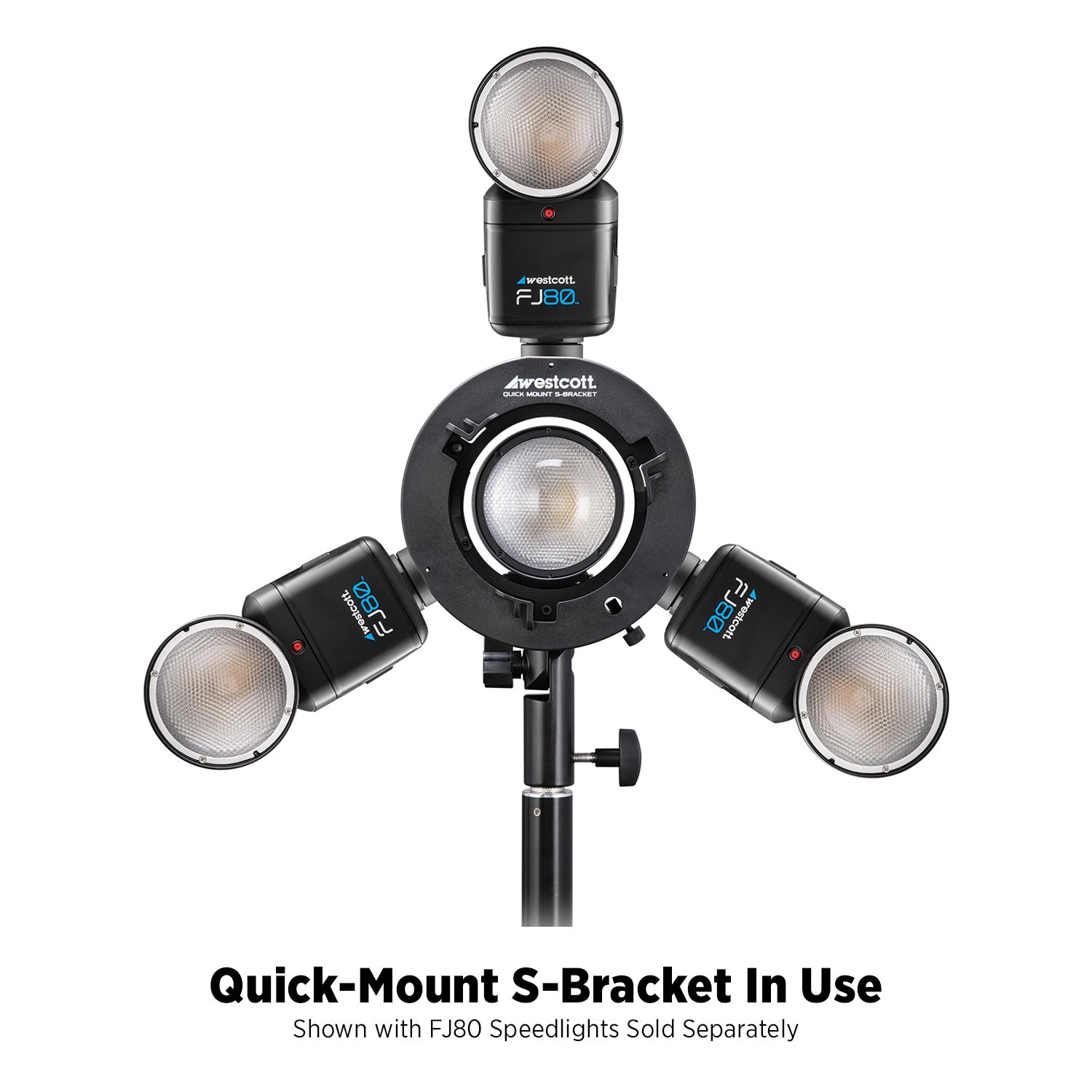

• Includes 3 cold shoe mounts around the perimeter for pairing speedlights with umbrella-based modifiers
• Solid metal and high-impact composite construction ensures stability and reliability

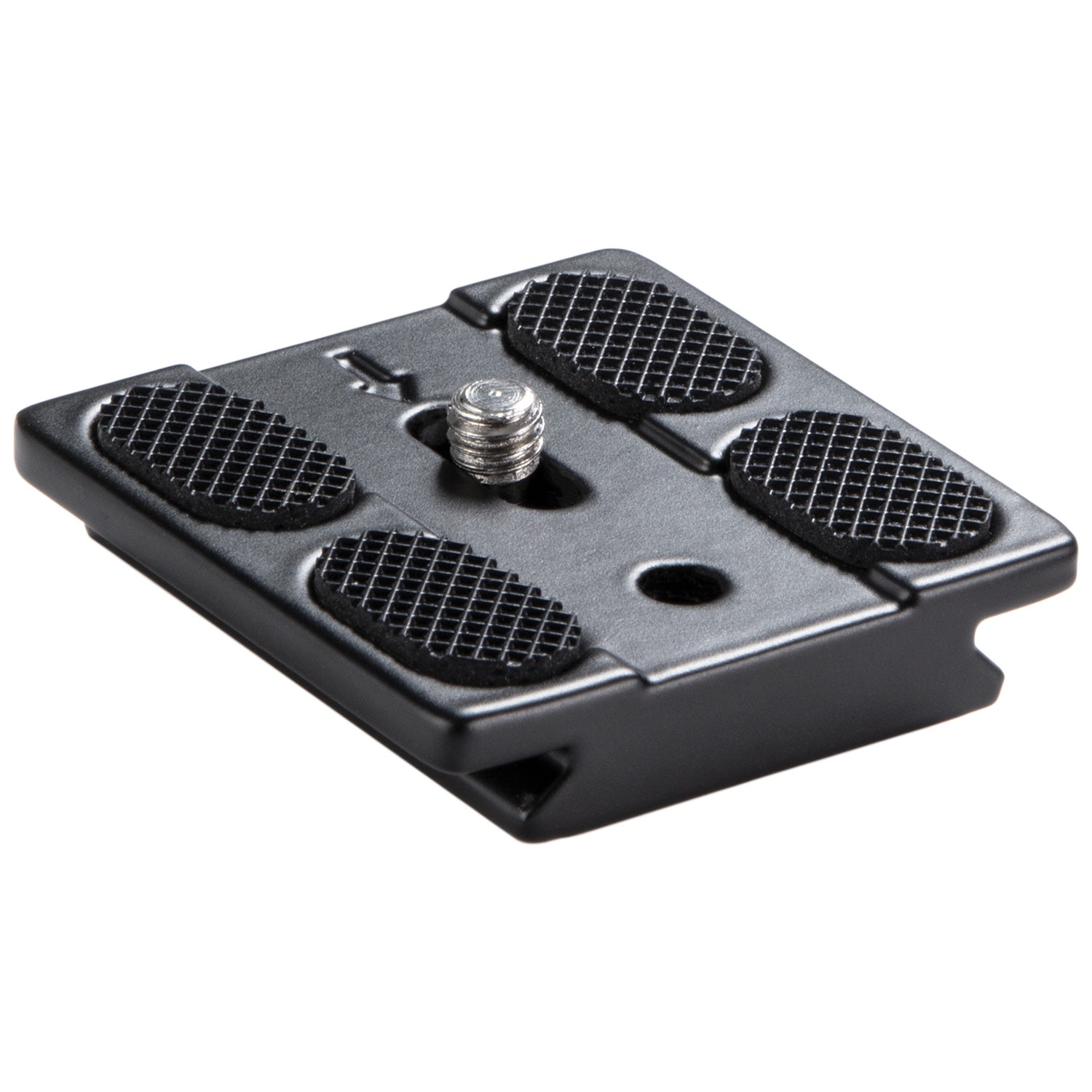

• The versatile quick-mount plate can remain attached to your light for future mounting

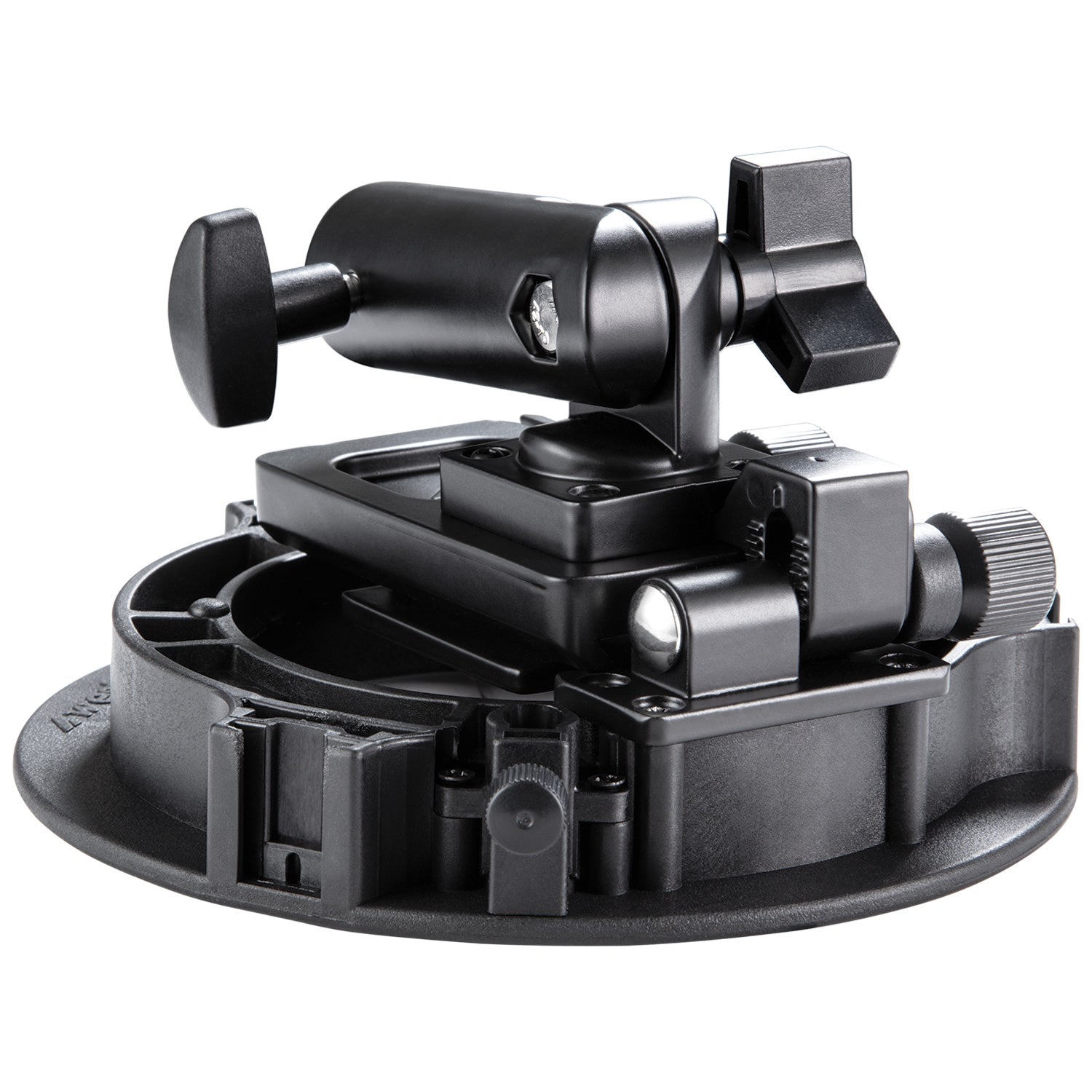

• Built-in tilter bracket with 5/8" receiver adjusts up to 180-degrees for precise light placement
• Vertical adjustment knob allows for precise vertical placement of the light head within the light head opening
• Compatible with lights up to 3.5" diameter and modifiers up to 4.5 lbs.

Precise Placement for Maximum Light Output

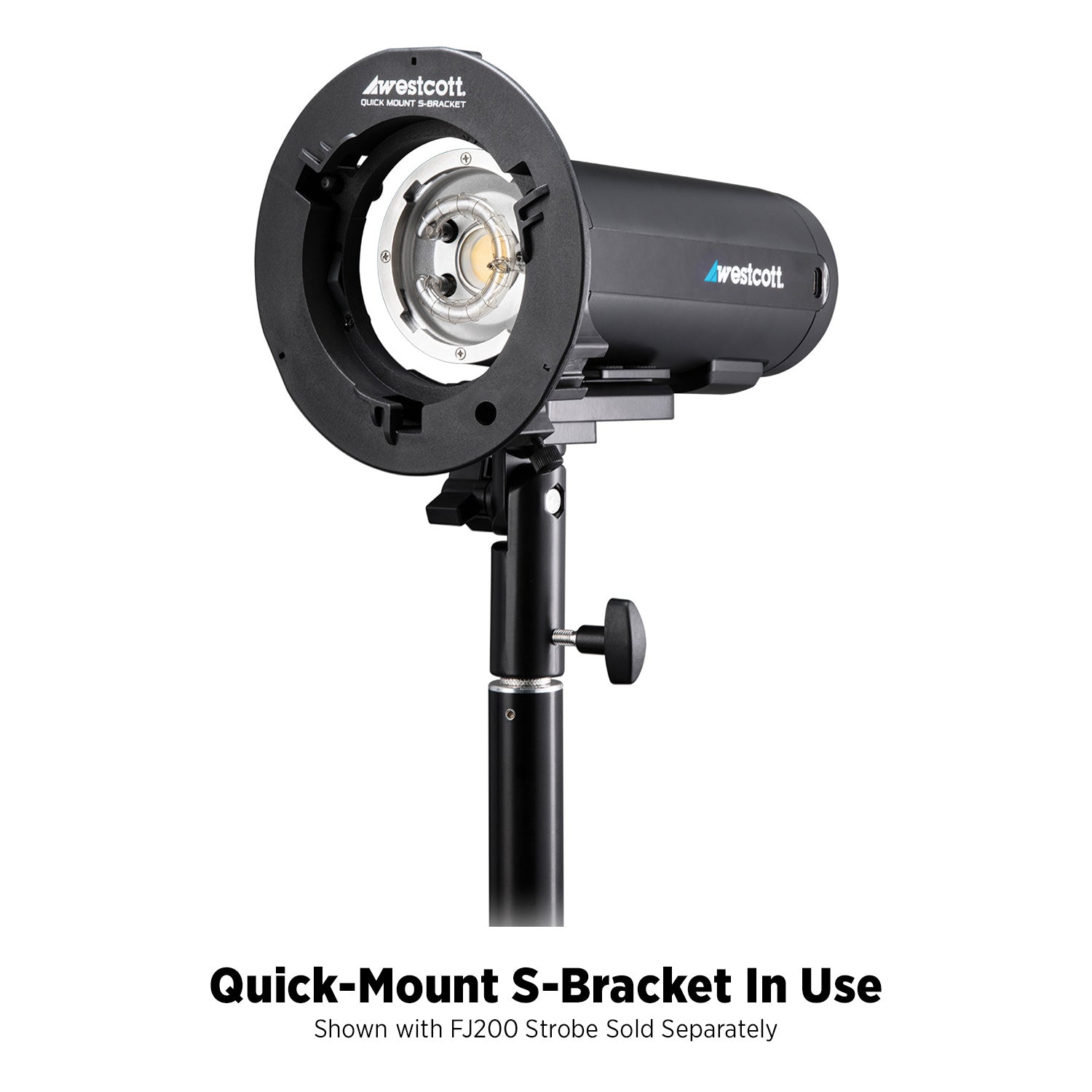

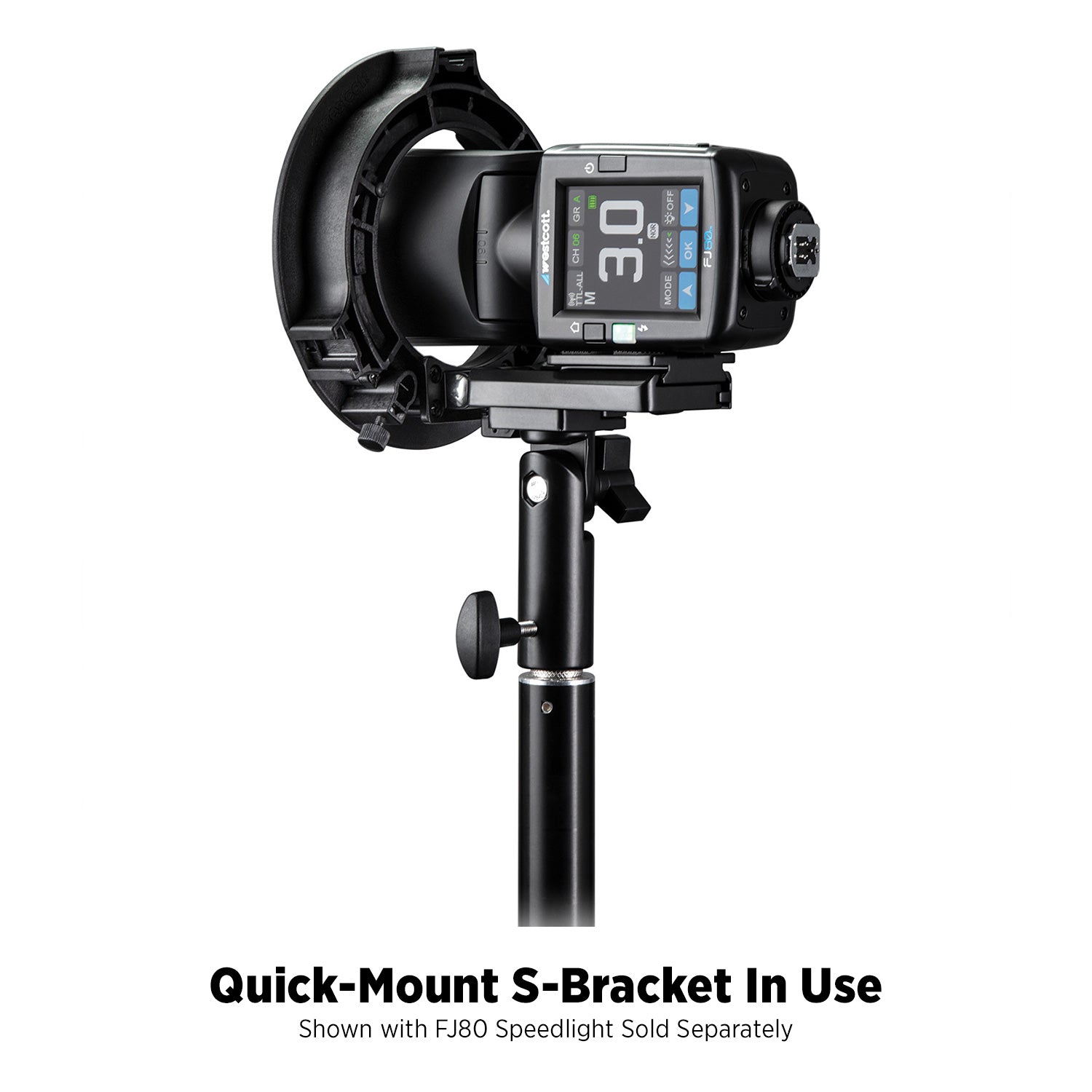

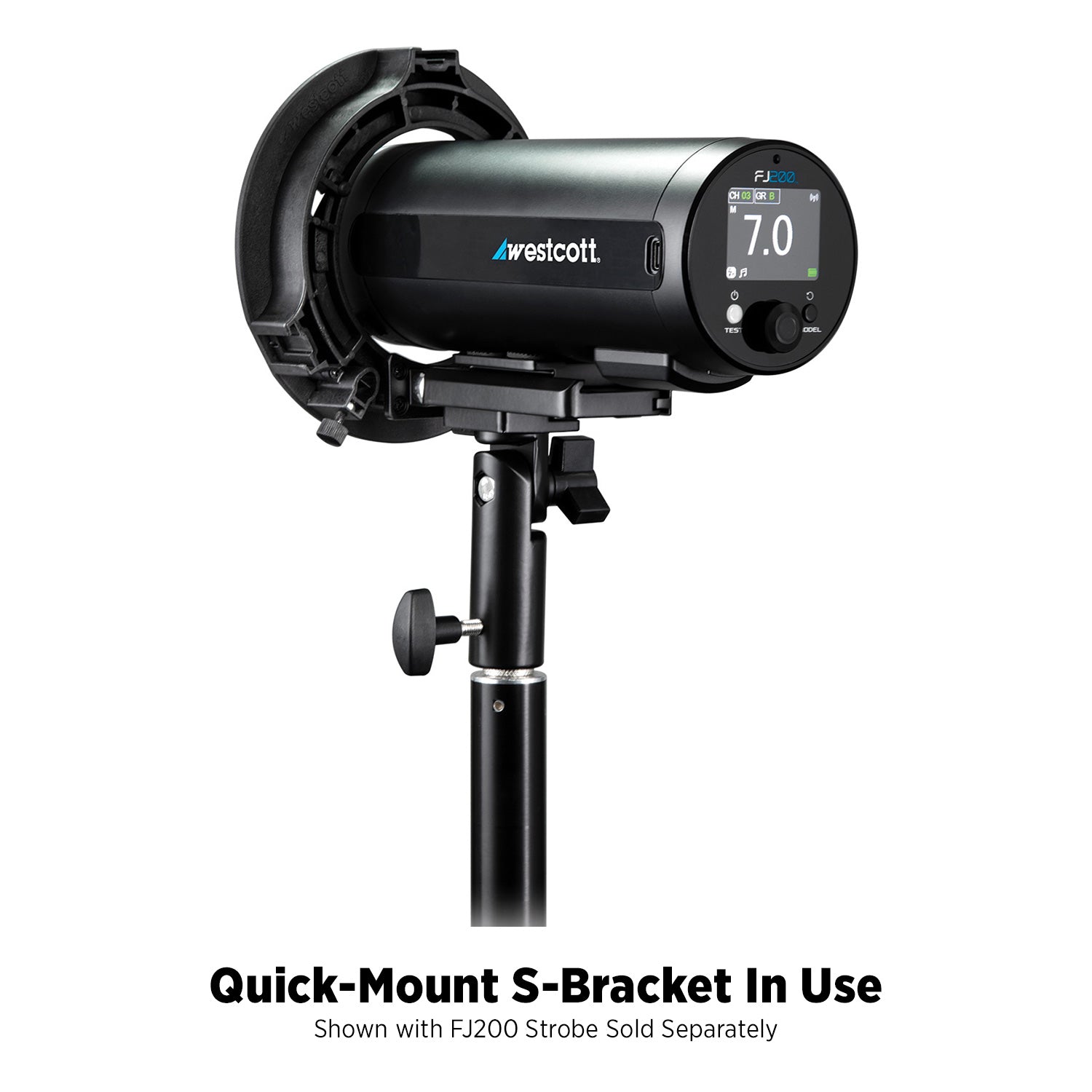

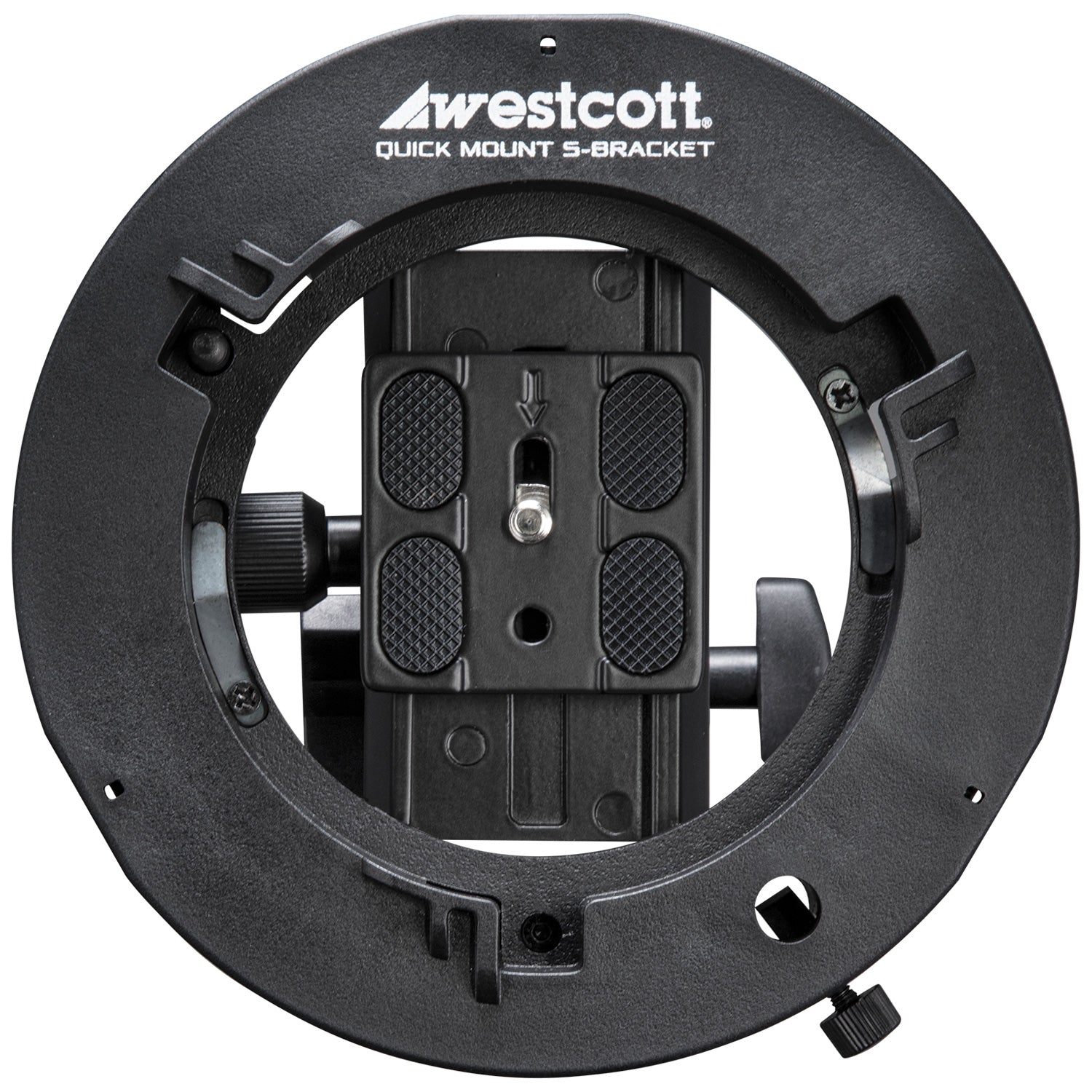

This durable, quick-mount system is designed to avoid placing unwanted stress or pressure on your light. The light mount bracket includes an adjustable Arca-type mounting plate that allows precise horizontal positioning of your light to evenly fill a light modifier. A vertical adjustment knob allows for precise vertical placement of the light head within the light head opening.

Quick-Switch Design with Multiple Mounting Options

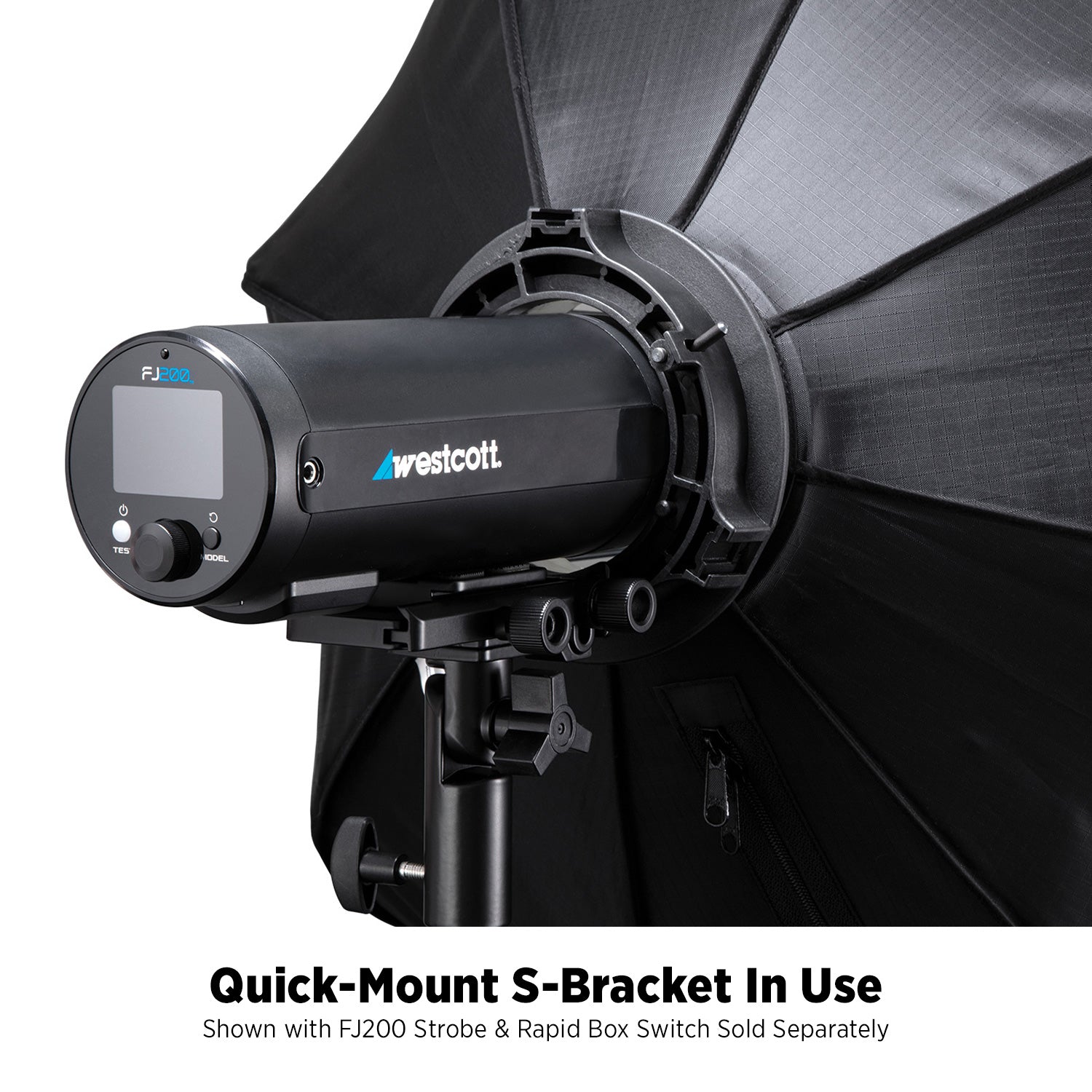

The quick-mount bracket includes a Bowens S-Type accessory mount for light modifiers including Rapid Box Switch, studio softboxes, reflectors, snoots, grids, barndoors, and more. For added convenience, the quick-mount plate can remain attached to your light for future mounting.

Increase Output Using Umbrella-Style Light Modifiers

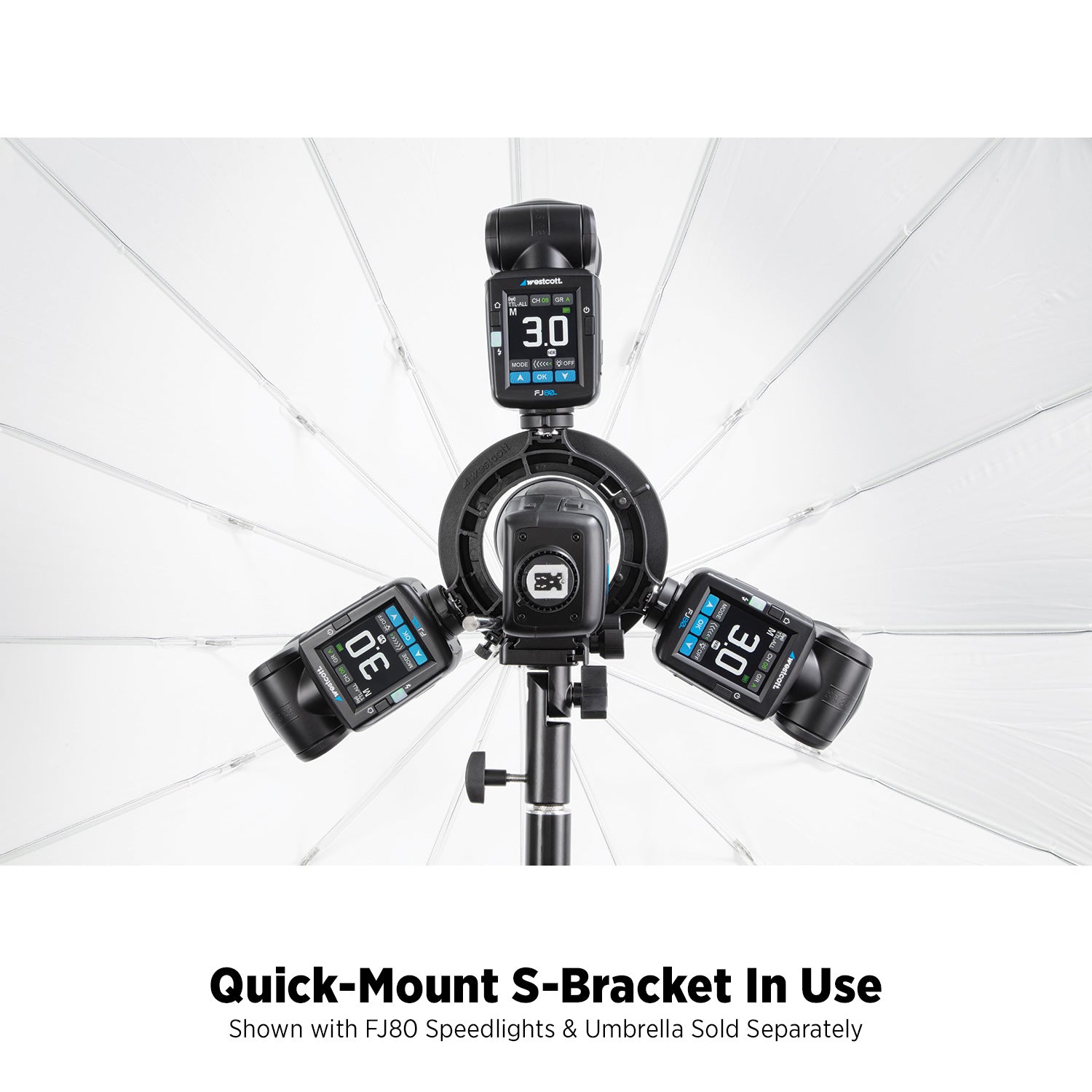

The S-Type bracket features an umbrella receptacle with a locking tension screw for securing umbrella-based modifiers with shaft diameter up to 8mm, including Halo and Apollo softboxes, 7’ umbrellas, and more. The S-Bracket also has 3 perimeter cold shoe mounts for pairing speedlights with umbrella-based modifiers to further maximize light output.

Durable Construction Compatible with Standard Light Support Systems

Constructed of solid metal and high-impact composite materials, this durable bracket ensures stability, reliability, and longevity. The S-Bracket offers a standard 5/8" stand mount for compatibility with many support systems. Its built-in tilter bracket allows variable angle-adjustments up to 180-degrees for precise light placement.

In The Box:

• 1 x Quick-Mount S-Bracket

Mounting

Mount Type

Rapid Box Switch

Modifier Application

8mm (Umbrella Shaft)

Max Light Head Size

3.5 in. (8.9 cm)

Max. Load Weight

4.5 lbs. (2.0 kg)

Max Watts

300W

Thread Size

1/4" #20, 5/8" (16mm) Stand

General

Package Qty.

1

Product Dimensions

9.0 × 6.0 × 5.4 in. (22.9 × 15.2 × 13.7 cm)

Item Weight

1.1 lbs. (0.5 kg)

Materials

Aluminum, Impact-Resistant Plastic

Use & Care Instructions

Wipe clean with damp cloth. Painted finish subject to scratching.
